CCHRC Research and Testing Facility (RTF)

REMOTE Wall Test Sections

North Office - North Wall Monitoring

The North Office - north wall is constructed of 2x6 wood studs with 3 layers of 2 inch expanded polystyrene by Western Insulfoam placed on the outside of the structural members. The layers of rigid insulation have a combined R-Value of 27. The wall cavity is filled with R-19 fiberglass batts by Johns Manville creating a total wall assembly R value of nearly 46.

North Wall Graphs

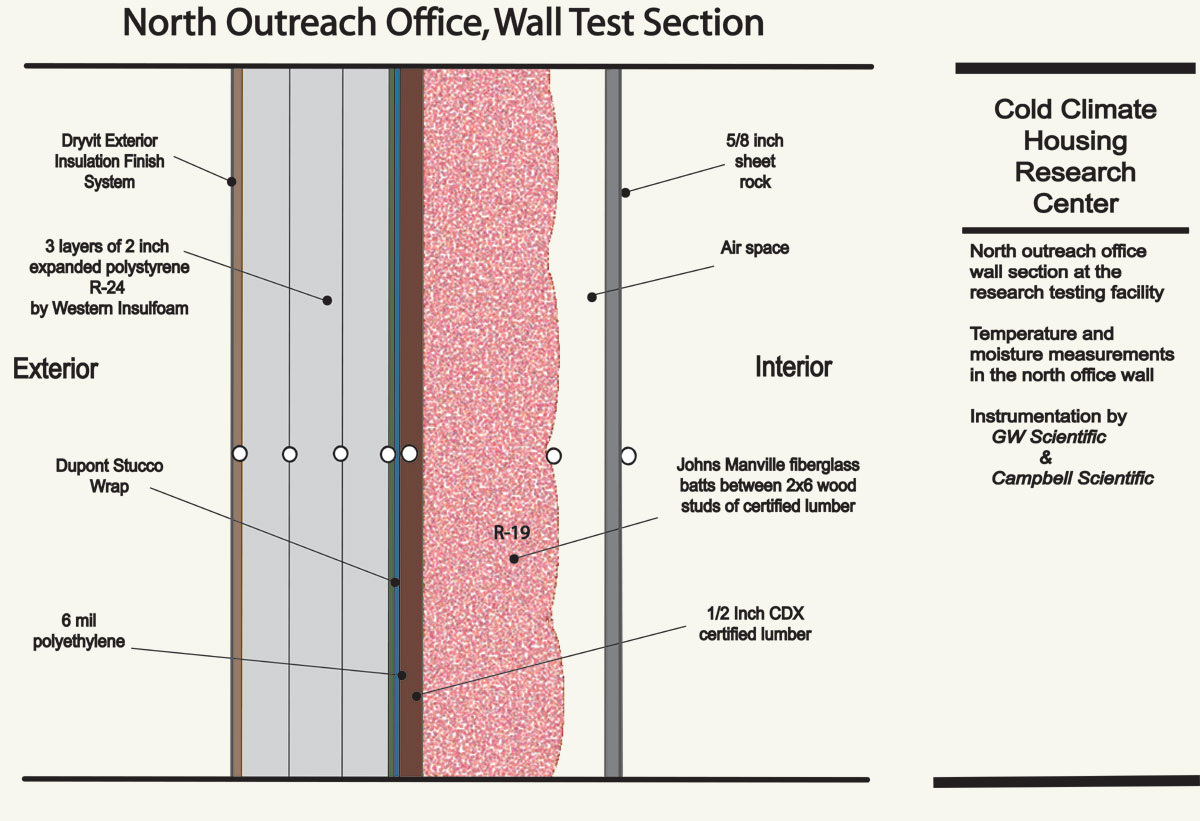

North Wall Section

Realtime Graph
Average Hourly Temperature South Wall
7-Day | 2-Month | 4-Month | 12-month


Photo Gallery : North Office - North Wall Installation
